OWELL industries Portable diesel generator set
Weichai series diesel generator sets are equipped with water-cooling four-stroke industrial diesel engines produced by Weichai Power Company Limited. The gensets use modular design, compact structure. the voltage of control system is 24VDC. and equipped with diesel and oil spin-on filter and dry filter. They have good power, economy, reliability, the parts are versatile, easy to replace and easy maintenance.
OWELL industries Portable diesel generator set
Weichai series diesel generator sets are equipped with water-cooling four-stroke industrial diesel engines produced by Weichai Power Company Limited. The gensets use modular design, compact structure. the voltage of control system is 24VDC. and equipped with diesel and oil spin-on filter and dry filter. They have good power, economy, reliability, the parts are versatile, easy to replace and easy maintenance.

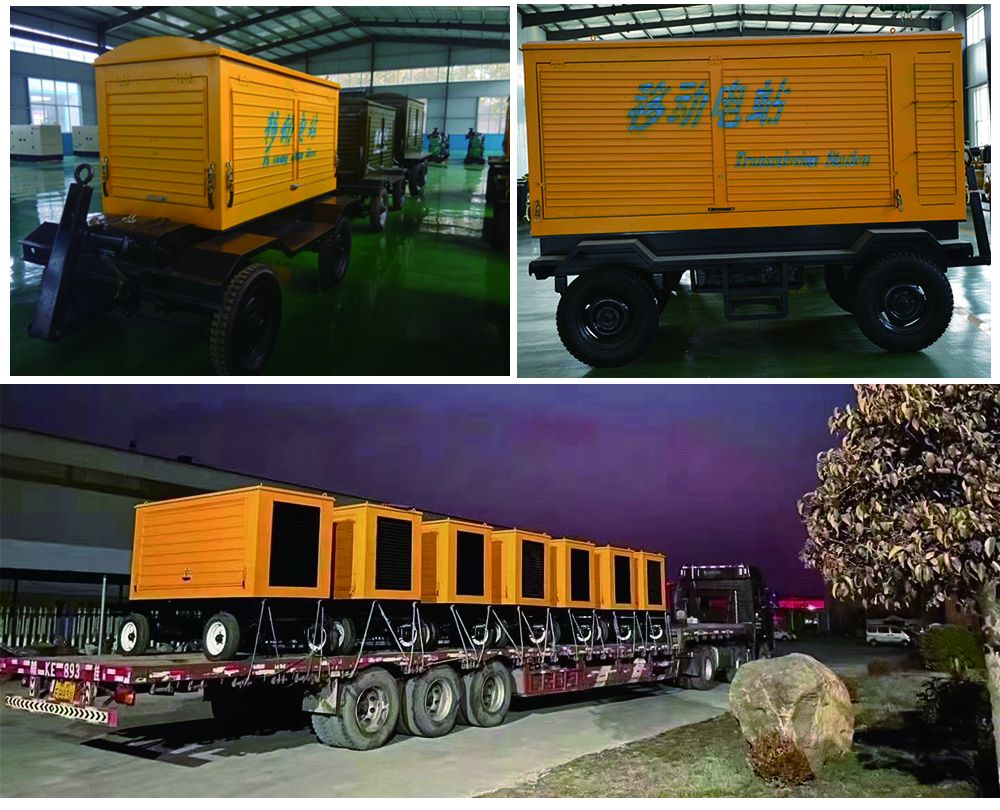

1. Leaf spring suspension structure; equipped with a mechanical parking brake (hand brake) and an air brake connected to the tractor;
2. The generator set trailer adopts a height-adjustable bolt-type traction frame, which is suitable for tractors of various heights, with large turning angles and high mobility;
3. The four corners of the frame are equipped with mechanical support devices, there are operation and maintenance platforms on three sides of the trailer, and pedals at the rear.
OVERVIEW
| ITEM | RATED POWER(KW/KVA) | STANDBY POWER(KW/KVA) | ENGINE MODEL | CYLINDER | BORE/TRIP(mm) | FUEL CONSUMPTION(g/kw.h) |
| OWELL-WC20GF | 23/29 | 25/31 | WP2.3D25E200 | 4 | 89/92 | ≤220 |
| OWELL-WC25GF | 30/38 | 33/41 | WP2.3D33E200 | 4 | 89/92 | ≤212 |
| OWELL-WC30GF | 36/45 | 40/50 | WP2.3D40E200 | 4 | 89/92 | ≤216 |
| OWELL-WC40GF | 44/55 | 48/60 | WP2.3D48E200 | 4 | 89/92 | ≤216 |
| OWELL-WC50GF | 60/75 | 66/83 | WP4.1D66E200 | 4 | 105/118 | ≤235 |
| OWELL-WC50GF | 60/75 | 66/83 | WP4D66E200 | 4 | 105/130 | ≤208 |
| OWELL-WC64GF | 72/90 | 80/100 | WP4.1D80E200 | 4 | 105/118 | ≤235 |
| OWELL-WC75GF | 90/113 | 100/125 | WP4D100E200 | 4 | 105/130 | ≤203 |
| OWELL-WC80GF | 97/121 | 108/135 | WP4D108E200 | 4 | 105/130 | ≤205 |
| OWELL-WC100GF | 120/150 | 132/165 | WP6D132E200E | 6 | 105/130 | ≤205 |
| OWELL-WC120GF | 138/173 | 152/190 | WP6D152E200 | 6 | 105/130 | ≤205 |
| OWELL-WC150GF | 152/190 | 167/209 | WP6D167E200 | 6 | 105/130 | ≤201 |
| OWELL-WC160GF | 182/228 | 200/250 | WP10D200E200 | 6 | 126/130 | ≤215 |
| OWELL-WC200GF | 216/270 | 238/298 | WP10D238E200 | 6 | 126/130 | ≤215 |
| OWELL-WC220GF | 240/300 | 264/330 | WP10D264E200 | 6 | 126/130 | ≤215 |
| OWELL-WC250GF | 288/360 | 317/396 | WP12D317E200 | 6 | 126/155 | ≤210 |
| OWELL-WC300GF | 290/363 | 320/400 | WP10D320E200 | 6 | 126//130 | ≤210 |
| OWELL-WC320GF | 350/438 | 385/481 | WP13D385E200 | 6 | 127/165 | ≤210 |
| OWELL-WC350GF | 400/500 | 405/506 | WP13D405E200 | 6 | 127/165 | ≤200 |
| OWELL-WC360GF | 406/508 | 447/559 | 6M26D447E200 | 6 | 150/150 | ≤197 |
| OWELL-WC400GF | 440/550 | 484/605 | 6M26D484E200 | 6 | 150/150 | ≤210 |
| OWELL-WC450GF | 520/650 | 572/715 | 6M33D572E200 | 6 | 150/185 | ≤210 |
| OWELL-WC500GF | 550/688 | 605/756 | 6M33D605E200 | 6 | 150/185 | ≤210 |
| OWELL-WC650GF | 720/900 | 792/990 | 12M26D792E200 | 12 | 150/150 | ≤210 |
| OWELL-WC730GF | 820/1025 | 902/1128 | 12M26D902E200 | 12 | 150/150 | ≤210 |
| OWELL-WC800GF | 880/1100 | 968/1210 | 12M26D968E200 | 12 | 150/150 | ≤210 |
| OWELL-WC900GF | 1007/1259 | 1108/1385 | 12M33D1108E200 | 12 | 150/185 | ≤210 |
| OWELL-WC1000GF | 1100/1375 | 1210/1513 | 12M33D1210E200 | 12 | 150/185 | ≤210 |
Soundproof, Rainproof and Dustproof Design
OPTIONAL
