WEICHAI power series 400kW/500kVA standby diesel generator set with ATS to Kazakhstan market.
Support International Warranty Service
| 1. Genset main specifications | ||
| Genset model | SW550GFS | |
| Rated power(KW/KVA) | 400/500 | |
| Standby power(KW/KVA) | 440/550 | |
| Rated Current/Max. Current(A) | 626 | |
| Reference sizes (L*W*H) | 4250*1600*2180 | |
| Reference weight | 4380kg | |
| Rated output voltage(V) | 380/220; 3 phase 4 wire | |
| Frequency (Hz) | 50 | |
| Rated speed(rpm) | 1500 | |
| Rated power factor | 0.8 | |
| Exciting mode | Brushless self-excitation | |
| Starting mode | DC24V motor starting | |
| Speed regulation | Electronic control unit (ECU) | |
| Cooling mode | Closed water cooling | |
| 2. Gensent main performance index | ||
| Frequency drop (%) | 0-5 | |
| Steady-state frequency band(%) | ≤1.5 | |
| Transient frequency deviation | 100% sudden power reduction(%) | ≤+12 |
| Sudden power boost(%) | ≤-20 | |
| Frequency recovery time (S) | ≤5 | |
| Relative frequency tolerance band(%) | 2 | |
| Steady voltage deviation(%) | ≤±2.5 | |
| Transient Voltage deviation | 100% sudden power reduction(%) | ≤+25 |
| Sudden power boost(%) | ≤-20 | |
| Voltage recovery time (S) | ≤6 | |
| 3. Engine technical specs | ||
| Model | Weichai WP13D490E310 | |
| Rated power(KW) | 450 | |
| Max.power(KW) | 490 | |
| Rated speed(rpm) | 1500 | |
| Type | Water cooled, in-line, four stroke, turbocharge | |
| Intake type | turbocharged | |
| Cylinder No. | 6.L | |
| Compression ratio | 17：1 | |
| Bore*Trip | 127*165 | |
| Oil capacity | 12.54L | |
| Displacement | 30L | |
| Coolant Capacity | 70L | |
| 4.Alternator technical specs | ||
| Model | HC534D | |
| Rated power(KW) | 400/500 | |
| Voltage(V) | 380/220 | |
| Frequency(Hz) | 50 | |
| Insulation class | Н Class | |
| Protection class | IP22 | |
| Phase & wires | three-phase four-wire | |
| Voltage regulator | AVR | |
| Exciting mode | Brushless self-excitation | |
| 5. Control system specs | ||
| Model | HGM6120 | |
| Display | LCD（132x64） | |
| Controller language | Chinese & English & Spanish & Russian & Others | |
| Alarm | Ø Speed is too high/too low Ø The battery voltage is too low or too high Ø Start and stop failed Ø Charging failure Ø Overcurrent Ø Genset voltage is too low/too high Ø Low oil pressure Ø Emergency stop Ø Excessive engine temperature Ø Overload | |
| Monitor display | Ø Genset voltage (phase-phase/Phase-line) Ø Engine oil pressure (pounds per square inch - bar) Ø Current(L1,L2,L3) Ø Engine temperature (°C and °F) Ø Genset frequency (Hz) Ø Factory battery voltage Ø Engine running hour meter Ø Unit kVA, KWH Ø Unit power as a percentage of rated power Ø Unit Cos (σ) | |
| Configuration Details | |||
| Item | Model | Quantity | Remark |
| Engine | Weichai WP13D490E310 | 1 | installed |
| Alternator | HC534D | 1 | installed |
| Radiator | 50℃ Aluminum water tank | 1 | installed |
| Breaker | 800A Chint MCCB | 1 | installed |
| Control System | SmartGen HGM6120CAN | 1 | installed |
| Chassis | steel chassis with 700L diesel oil tank | 1 | installed |
| Fuel filter | original | 1 | installed |
| Oil filter | original | 1 | installed |
| Air filter | original | 1 | installed |
| Storage battery | Maintenance-free battery | 1 | installed |
| battery cable | Pure copper battery wire | 1 | installed |
| Absorber | original | 1 | installed |
| silencer | Industrial exhaust silencer and stainless steel bellow | 1 | installed |

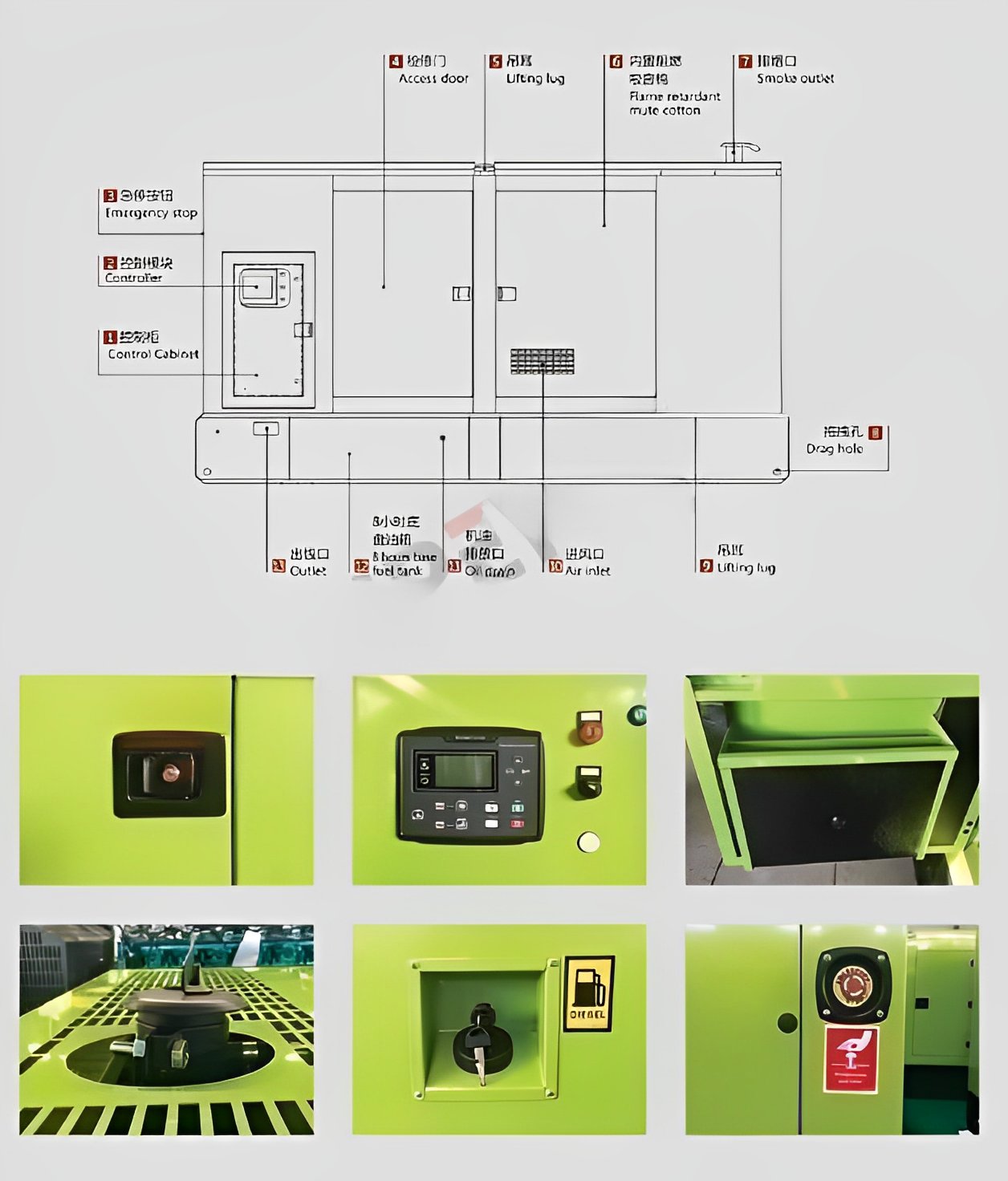

| Silent canopy | 1.5/2mm cold plate bending, pickling phosphating, spraying, internal paste 40mm high performance sound-absorbing sponge, independent exhaust chamber, air inlet noise reduction partition;；65dB~70dB; | 1 | installed |
| Independent ATS Cabinet | 800A ATS Cabinet | 1 | Included |
| Accessories and materials | Generator Unit manual; Engine manual; Alternator manual;Certificate of qualification; tools, etc | 1 | Included |
