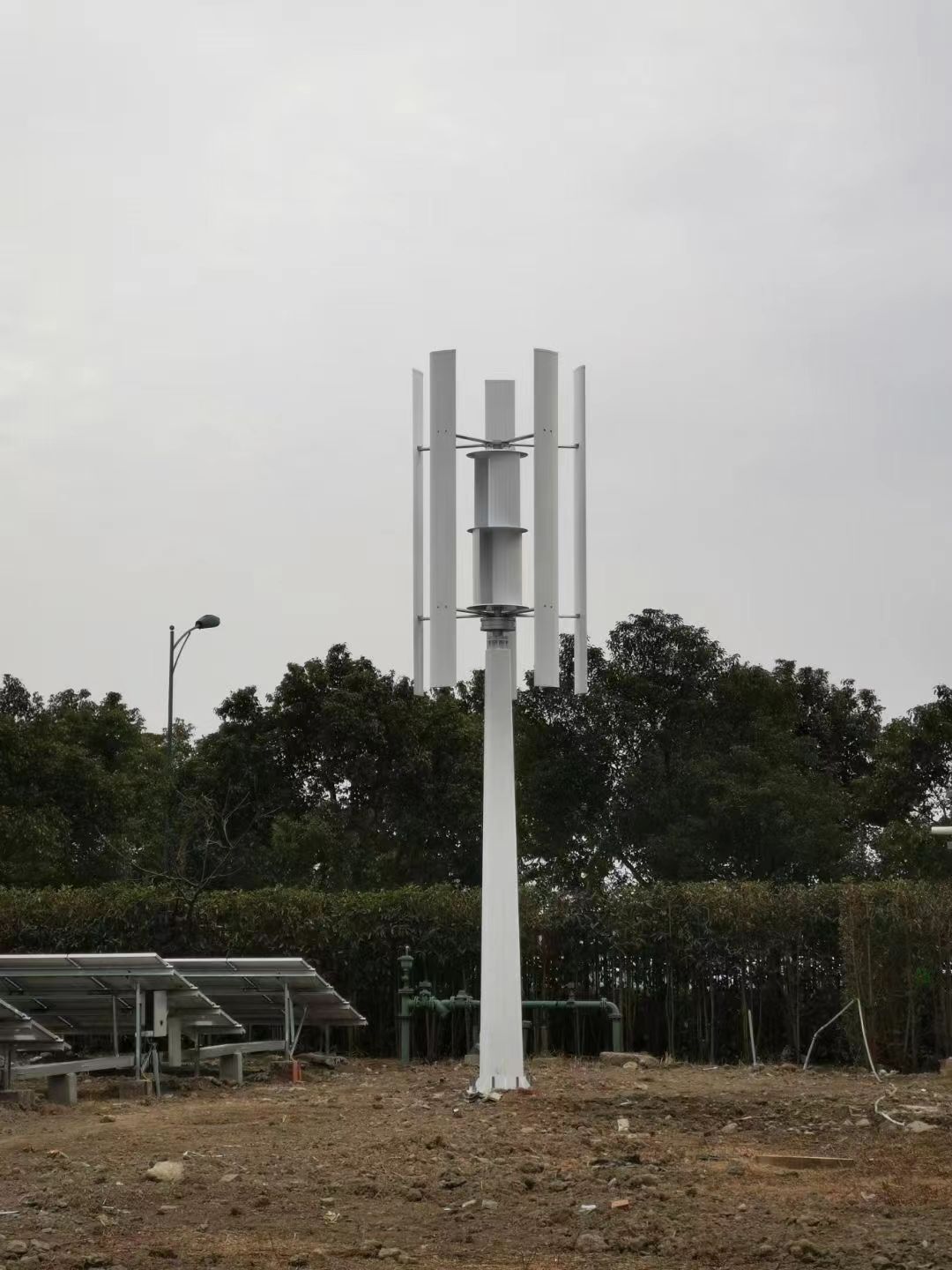

vertical axis 3KW wind energy turbine generator
Features:
lDirect-drive permanent magnet iron-less synchronous generator
lStall design of blade over wind speed
lMechanical automatic brake
lElectronic unloading and hydraulic brake protection
lEquipped with anemometer
lPWM unloading
lPLC controller, equipped with hmi real-time screen monitoring, can download historical data.
vertical axis 3KW wind energy turbine generator
Features:
lDirect-drive permanent magnet iron-less synchronous generator
lStall design of blade over wind speed
lMechanical automatic brake
lElectronic unloading and hydraulic brake protection
lEquipped with anemometer
lPWM unloading
lPLC controller, equipped with hmi real-time screen monitoring, can download historical data.
OVERVIEW
| Model | OW-3KWH |
| Design Class | IEC Class Ⅲ |
| Service Time | 20 year |
| Wind Turbine Diameters | 3.2m |
| Blade Height | 3.6 m |
| Tower Type | Independent pole |
| Certificate | CE |
| Rated Power | 3kW |
| Power Regulation | MPPT |
| Rated RPM | 220 RPM |
| Start-up Wind Speed | 2.3m/s |
| Rated Wind Speed | 11m/s |
| Maximum Wind Speed | 53m/s |
| Blade Weight | 70kg±0.5kg |
| Alternator Weight | 100kg |
| Braking System | Electromagnetic |
| Electronic Unloading | 5kW braking resistor box |
| Hydraulic Brake | Active braking, power failure braking |
| Controller Unit | PLC |
| HMI | HMI |
| Alternator | Three-phase ironless permanent magnet synchronous |
| Rated Voltage | 380Vac |
| Insulation Class | H |
| Blade Materials | Alloy |
| Blade longth | 3.6m |
| Blade Qty | 3/4/5 pcs |
| Noise | 62FB |
| Noise Level | <65dBA |
| Temperature | ‐20°C~50°C |
| Altitude | Below 2000m |
| Protection Class | IP54 |

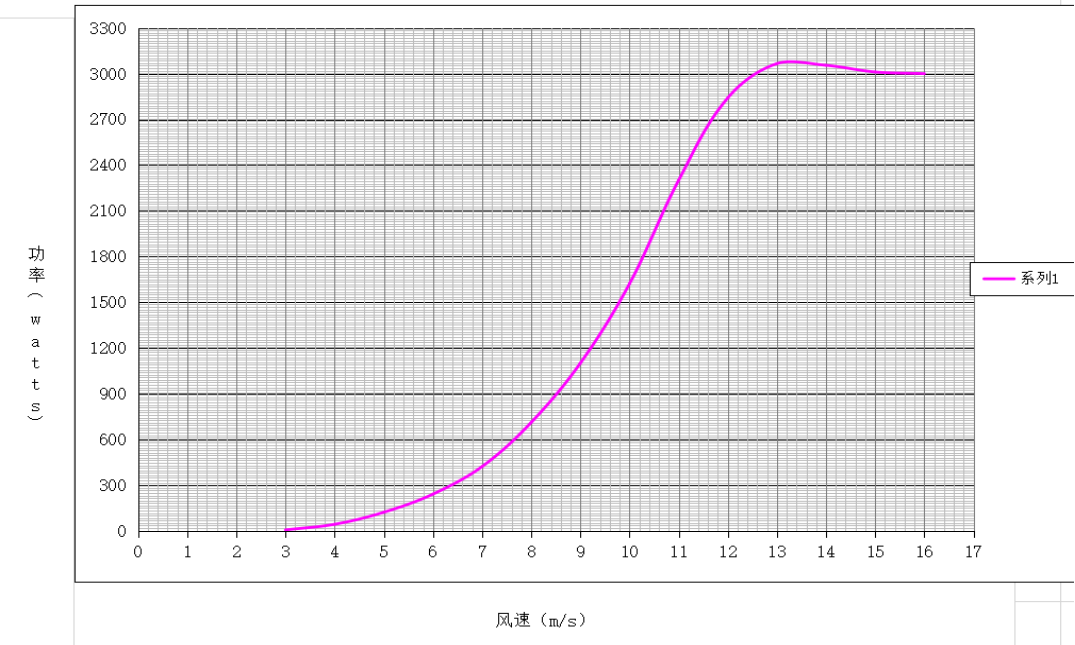

3kW Wind Generator Output Power Diagram
Accept Customization
