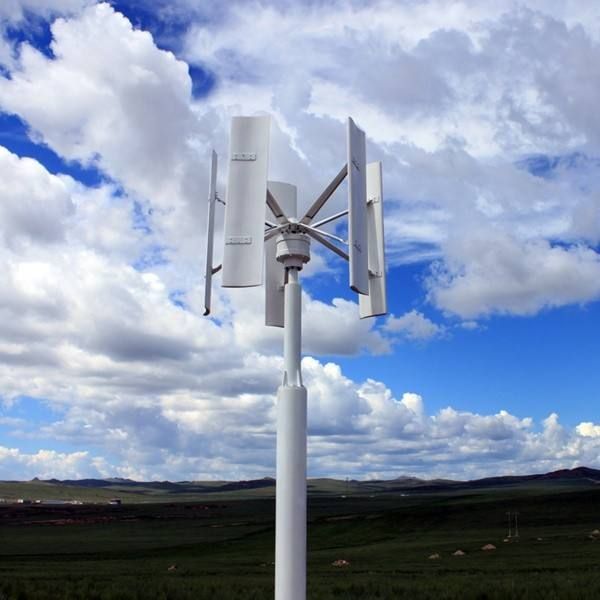

vertical axis 1kw wind turbine generator
Features:
lDirect-drive permanent magnet iron-less synchronous generator
lStall design of blade over wind speed
lMechanical automatic brake
lElectronic unloading and hydraulic brake protection
lEquipped with anemometer
lPWM unloading
lPLC controller, equipped with hmi real-time screen monitoring, can download historical data.
vertical axis 1kw wind turbine generator
Features:
lDirect-drive permanent magnet iron-less synchronous generator
lStall design of blade over wind speed
lMechanical automatic brake
lElectronic unloading and hydraulic brake protection
lEquipped with anemometer
lPWM unloading
lPLC controller, equipped with hmi real-time screen monitoring, can download historical data.
OVERVIEW
| Item | OWELL-1000H | ||
| Rated Power | 1KW | ||
| Max Power | 1.2KW | ||
| Rated Voltage | 48V/96/120V or customization | ||
| Rated RPM | 230 RPM | ||
| Start wind speed | 2m/s | ||
| Rated wind speed | 11m/s | ||
| Extreme wind speed | 53m/s | ||
| Wheel diameter | 2m | ||
| Wheel height | 2.8m | ||
| Electronic unloading | 3KW brake resistance box | ||
| Brake system | Electromagnetic brake/Mechanical brake | ||
| Controller unit | PLC | ||
| Interface | HMI | ||
| Noise | ＜65DBA | ||
| Insulation | H | ||
| Design level | IEC Class III | ||
| Protection Degree | IP54 | ||
| Blade quantity | 3/4/5 pcs | ||
| Blade material | aluminium alloy | ||
| Alternator | 3 phase permanent magnet synchronous generator | ||
| Control system | Electromagnetic/automatic adjustment | ||
| Yaw method | Speed self-protection, manual hydraulic brake, electronic brake | ||
| lubrication mode | Self-lubrication | ||
| Working temperature | -40℃-80℃ | ||
| Packing | Generator box 850*400*520mm 50kg; Blades box 1660*260*520mm 29kg | ||
