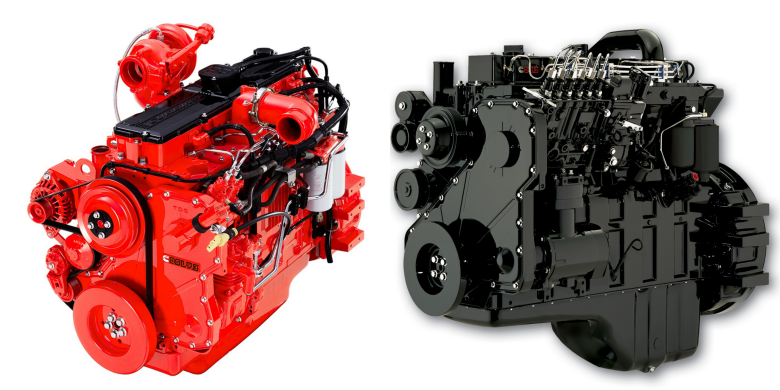

Cummins Engine Features
1. Cummins unique PT fuel system (except for the B and C series);
2. All use ω combustion chambe;
3. The cam followers are all roller type;
4. Most of the fuel and oil passages are drilled in the cylinder block and cylinder head;
5. Wet cylinder liner that is phosphated;
6. The crankshaft is forged with alloy steel,
and the journal is induction hardened;
7. The first ring groove of all pistons has nickel alloy cast iron insert to improve the life of the ring groove.
Cummins Engine Features
1. Cummins unique PT fuel system (except for the B and C series);
2. All use ω combustion chambe;
3. The cam followers are all roller type;
4. Most of the fuel and oil passages are drilled in the cylinder block and cylinder head;
5. Wet cylinder liner that is phosphated;
6. The crankshaft is forged with alloy steel,
and the journal is induction hardened;
7. The first ring groove of all pistons has nickel alloy cast iron insert to improve the life of the ring groove.

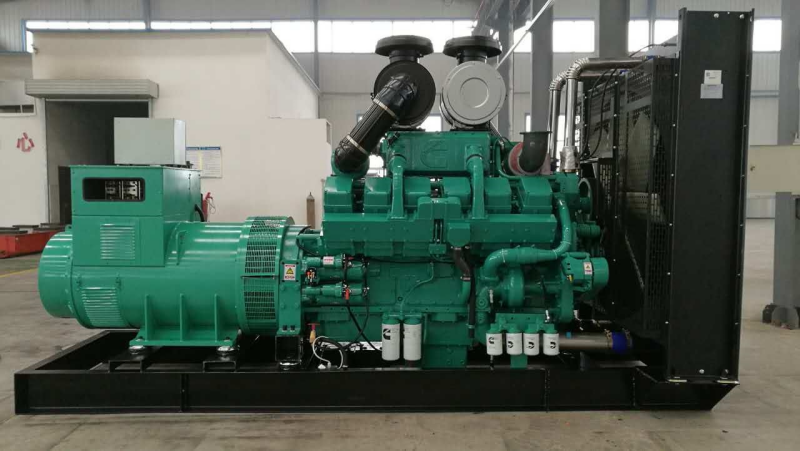

OVERVIEW
| GENSET MODEL | RATED POWER(KW/KVA) | STANDBY POWER(KW/KVA) | ENGINE MODEL | CYLINDER | BORE/TRIP (mm) | FUEL CONSUMPTION (g/kw.h) | MEASUREMENTS(L*W*H) mm |
| DCEC CUMMINS SERIES | |||||||
| OWELL-CM20GF | 24/30 | 30/37.5 | 4B3.9-G2 | 4 | 102/120 | ≤209 | 1650*720*1200 |
| OWELL-CM30GF | 36/45 | 40/50 | 4BT3.9-G2 | 4 | 102/120 | ≤209 | 1700*720*1200 |
| OWELL-CM50GF | 50/62.5 | 60/75 | 4BTA3.9-G2 | 4 | 102/120 | ≤209 | 1850*740*1250 |
| OWELL-CM60GF | 70/87.5 | 80/100 | 4BTA3.9-G11 | 4 | 102/120 | ≤209 | 1800*740*1350 |
| OWELL-CM70GF | 86/107.5 | 100/125 | 6BT5.9-G2 | 6 | 102/120 | ≤206 | 1950*780*1460 |
| OWELL-CM80GF | 86/107.5 | 100/125 | 6BT5.9-G2 | 6 | 102/120 | ≤206 | 2100*740*1400 |
| OWELL-CM100GF | 106/132.5 | 120/150 | 6BTA5.9-G2 | 6 | 102/120 | ≤206 | 2210*900*1400 |
| OWELL-CM120GF | 120/150 | 132/165 | 6BTAA5.9-G2 | 6 | 102/120 | ≤206 | 2250*890*1300 |
| OWELL-CM150GF | 163/203.8 | - | 6CTA8.3-G2 | 6 | 114/135 | ≤209 | 2320*860*1380 |
| OWELL-CM160GF | 183/229 | 190/238 | 6CTAA8.3-G2 | 6 | 114/135 | ≤209 | 2400*970*1500 |
| OWELL-CM200GF | 220/275 | 235/294 | 6LTAA8.9-G2 | 6 | 114/145 | ≤197 | 2500*1000*1570 |
| OWELL-CM250GF | 290/362.5 | 280/400 | 6LTAA9.5-G1 | 6 | 116.5/148 | ≤199 | 2600*975*1570 |
| OWELL-CM300GF | 340/425 | 380/475 | 6ZTAA13-G3 | 6 | 130/163 | ≤189 | 3030*1040*1610 |
| OWELL-CM350GF | 400/500 | 440/550 | QSZ13-G2 | 6 | 130/163 | ≤191 | 3230*1370*1959 |
| OWELL-CM380G | 450/563 | 470/588 | QSZ13-G3 | 6 | 130/163 | ≤193 | 3400*1450*1680 |
| DCEC CUMMINS SERIES (EU III) | |||||||
| OWELL-CM70GF | 79/99 | - | QSB3.9-G3 | 4 | 102/120 | ≤214 | 1950*780*1460 |
| OWELL-CM110GF | 120/150 | - | QSB5.9-G3 | 6 | 102/120 | ≤215 | 2250*890*1300 |
| OWELL-CM150GF | 168/210 | - | QSB6.7-G4 | 6 | 107/124 | ≤213 | 2320*860*1380 |
| OWELL-CM200GF | 235/294 | 360/450 | QSL8.9-G4 | 6 | 114/144.5 | ≤210 | 2500*1000*1570 |
| OWELL-CM300GF | 328/410 | - | QSZ13-G6 | 6 | 130/163 | ≤200 | 3030*1040*1610 |
| OWELL-CM350GF | 367/459 | 409/511 | QSZ13-G7 | 6 | 130/163 | ≤192 | 3230*1370*1959 |
Quality & Testing
Production & management follow ISO9001:2015 requirement, each generator must be passed strict inspection in each progressing.
1. All the raw materials/parts by IQC (Incoming Quality Control) before launch into process.
2. Each generator/part under control of IPQC (Input Process Quality Control).
3. Each generator/part must be pass 100% inspection between process.
4. All-sided ex-factory testing in various condition (Outgoing Quality Control), test items as following.
>Loading test in 0%, 25%, 50%, 75%, 100%,
>Heat run test
>Insulation resistance test
>Frequently starting test
>Alarm and timing relays test.

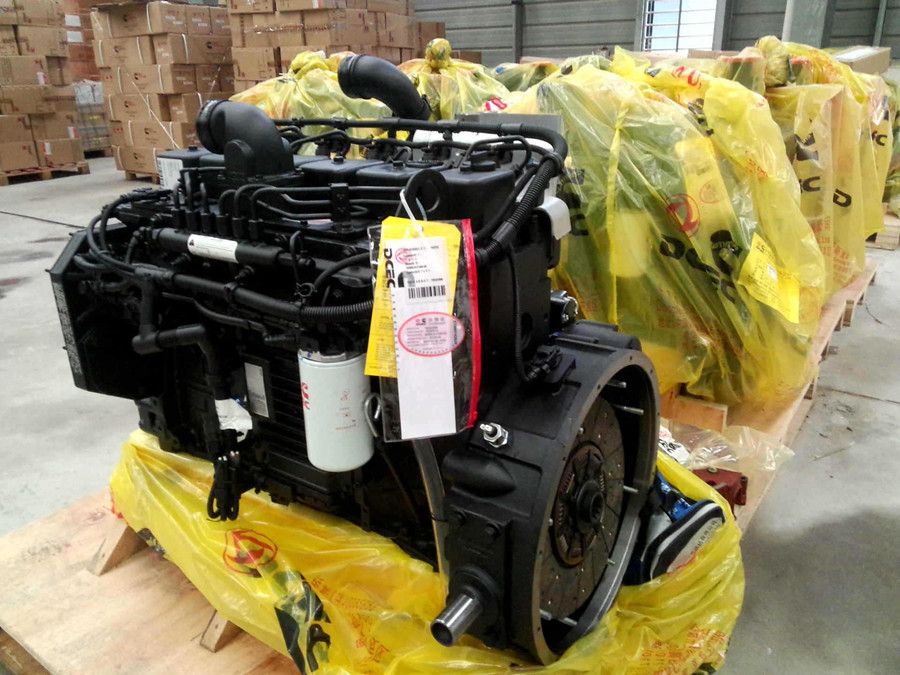

Packing & Delivery
