Product details

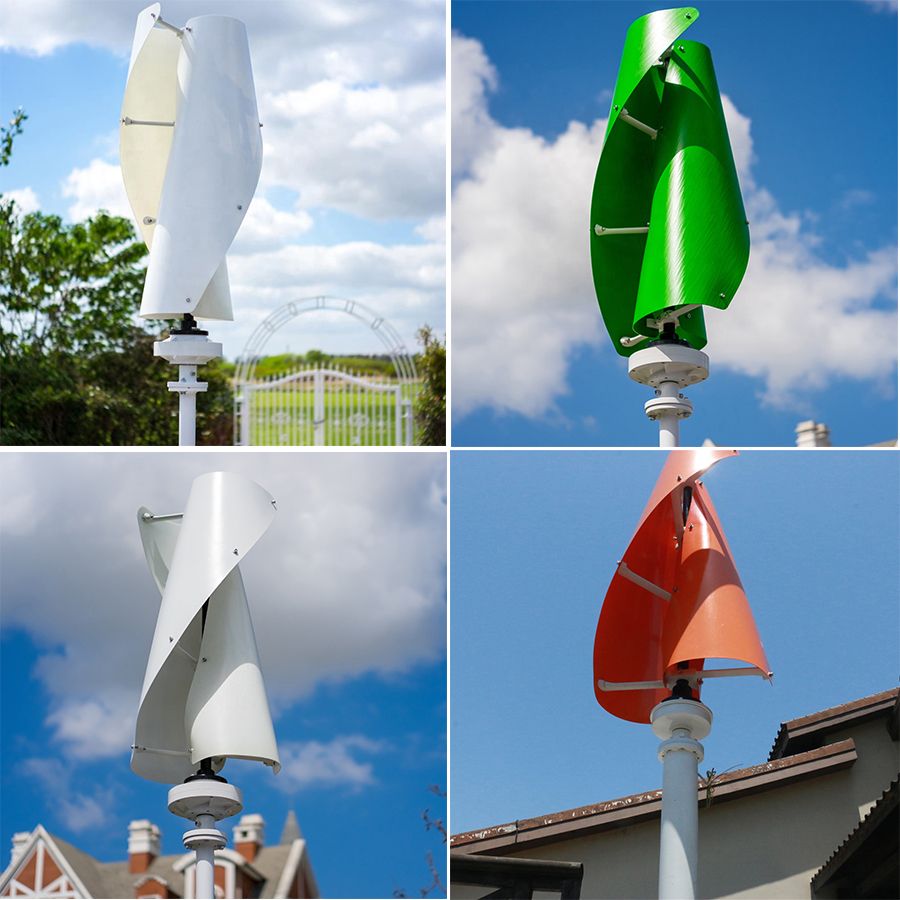

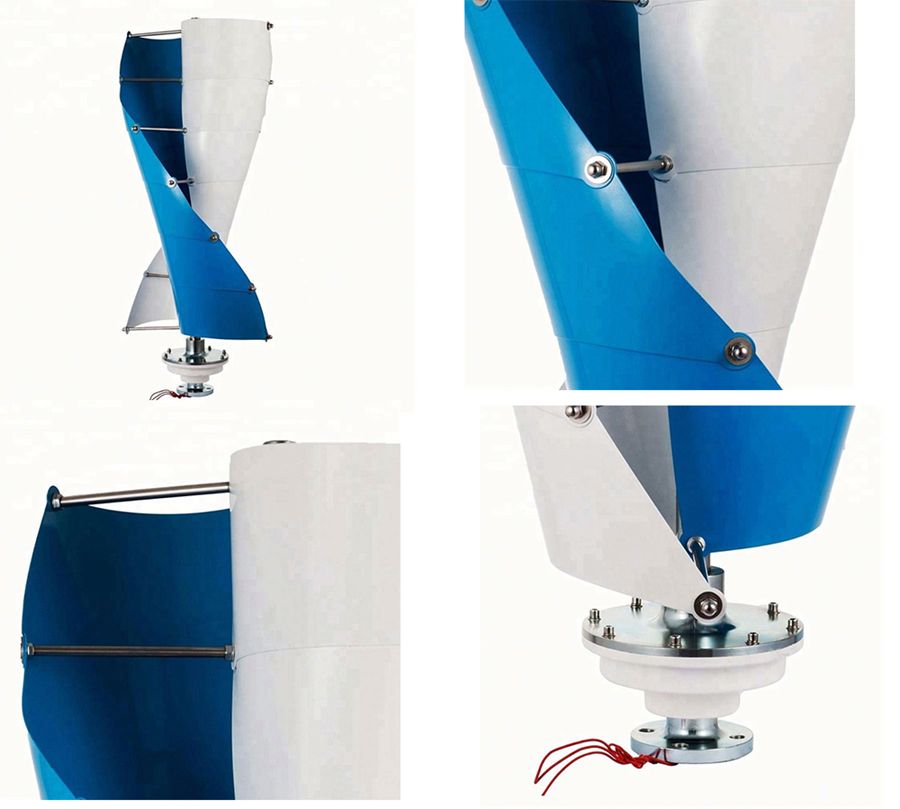

OWELL helical wind turbine generator


Hot Sales



ModelOWELL-W100WOWELL-W200WOWELL-W300WOWELL-W400WOWELL-W500W
Rate Power100W200W300W400W500W
Max.Power120W220W320W420W520W
Wheel Diameter0.46m0.46m0.46m0.54m0.54m
Net Weight14kg14.5kg15kg19kg21kg
Package Weight16kg16.5kg17kg23kg25kg
Package Sizes1030*280*300mm1180*280*300mm
Blade Quantity2-10 pcs
Rate Voltage12V/24V
Start-up Wind Speed2.5m/s
Rated Wind Speed12m/s
Extreme Wind Speed45m/s
Blade MaterialsAluminum Alloy/FRP
Generator housing MaterialsAluminum Alloy
Export PackingCarton
Generator Type3 phase AC Permanent Magnet Generator
Alnico MagnetNdFeB
LubricatingSelf-lubricating
Brake ModeElectromagnetic
Wind AdjustmentAutomatically adjustment to windward
Work Temperature-40℃ ~ 80℃

*The specifications above are just for reference. Contact us for more customized solutions!!
