4. High efficient disc AC alternator, excellent interior space design and patented rotor design reduce resistance torque of generator. Meanwhile, enhance the match and stability between wind wheels and alternator.
5. Intelligent microprocessor to control power tracking, adjust voltage and current to keep safe and stable
4. High efficient disc AC alternator, excellent interior space design and patented rotor design reduce resistance torque of generator. Meanwhile, enhance the match and stability between wind wheels and alternator.
5. Intelligent microprocessor to control power tracking, adjust voltage and current to keep safe and stable

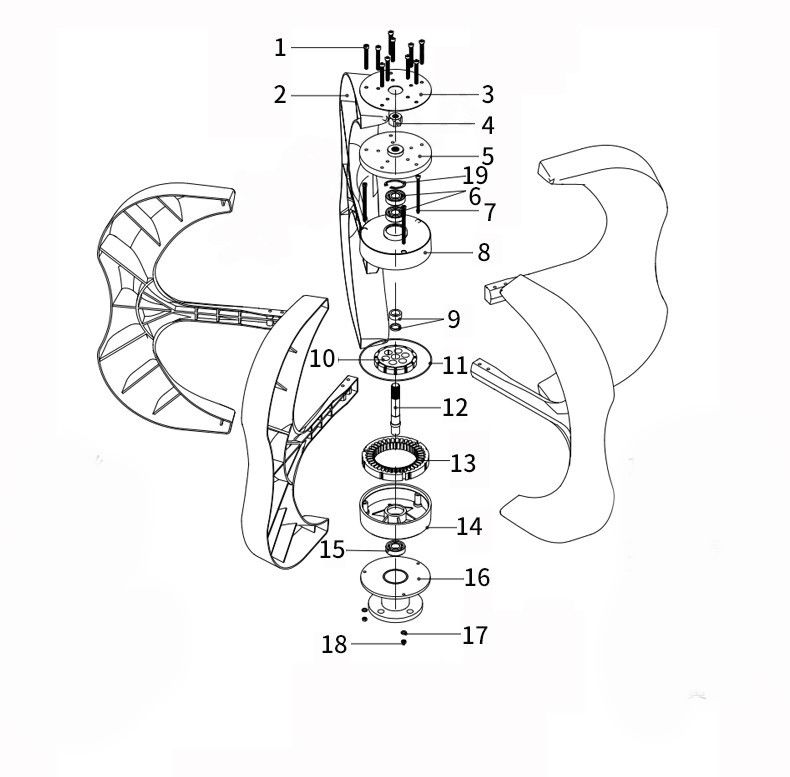

1. Screws 2. Blades 3. clamp 4. Nuts 5. Hub 6. Bearing 7. Top cover of generator housing 8. Bearing 9. Chuck ring 10. Rotor 11. Waterproof ring 12. Principal axis 13. Stator 14. Lower cover of generator housing 15. Bearing 16. H disk 17. Flat washer 18. Nuts 19. Snap ring
Hot Sales
Model
OWELL-R100W
OWELL-R200W
OWELL-R300W
Rate Power
100W
200W
300W
Max.Power
120W
220W
320W
Wheel Diameter
0.9m
0.9m
0.9m
Net Weight
8kg
8.5kg
9kg
Package Weight
11kg
11.5kg
12kg
Package Sizes
730*280*245mm
Blade Quantity
5 pcs
Rate Voltage
12V/24V
Start-up Wind Speed
2.5m/s
Rated Wind Speed
12m/s
Extreme Wind Speed
45m/s
Blade Materials
Nylon Fibers
Generator housing Materials
Aluminum Alloy
Export Packing
Carton
Generator Type
3 phase AC Permanent Magnet Generator
Alnico Magnet
NdFeB
Lubricating
Self-lubricating
Brake Mode
Electromagnetic
Wind Adjustment
Automatically adjustment to windward
Work Temperature
-40℃ ~ 80℃
*The specifications above are just for reference. Contact us for more customized solutions!!

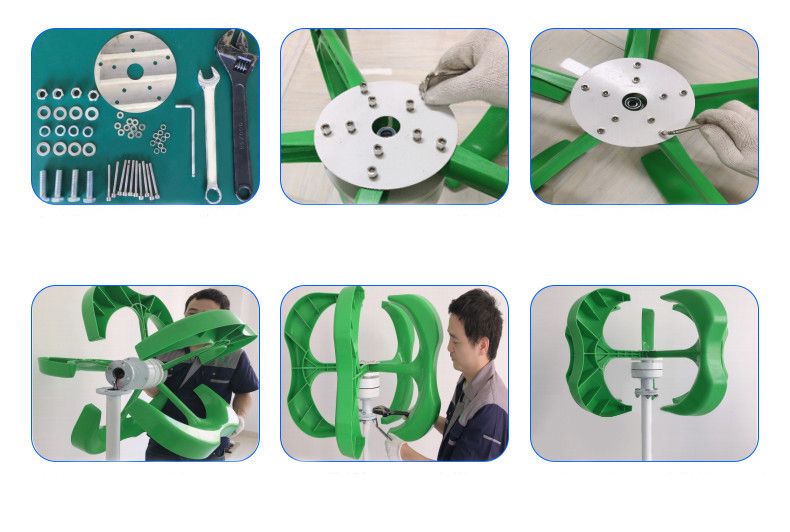

Installation Instructions

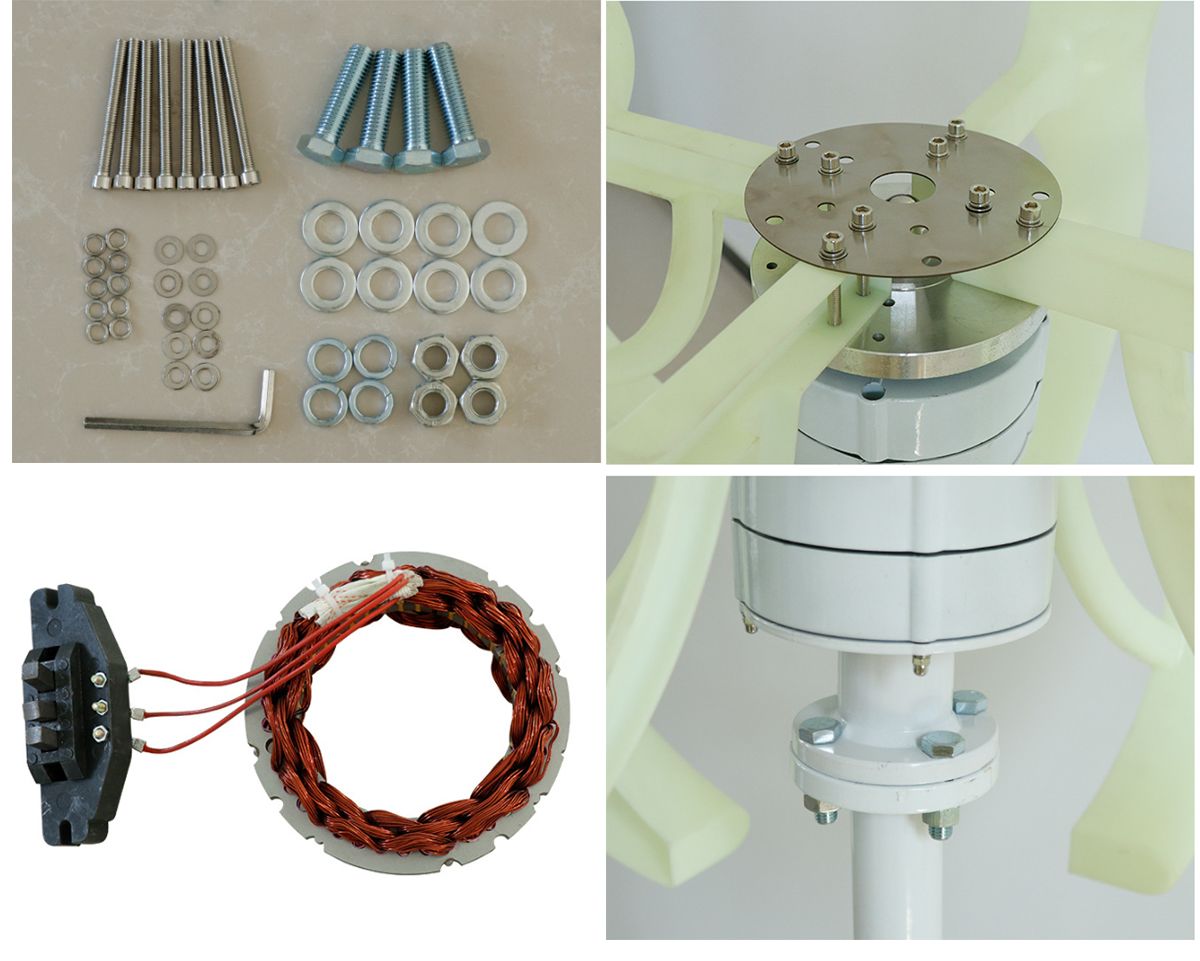

1. Prepare for all the accessories
2. Match the blades with hub
3. Fix the blades wirh bolts
4. Connect three conductors of generator to the cable;
Stranded length of wires shall not be less than 30mm;
Fasten the connecting end at 10mm with adhesive tape.
5. Install the pole to turbine, and fix the ring flange
6. Connect the turbine with controller
