Cummins engine:
1. with the features of superior performance, high combustion efficiency and fuel efficiency;
2. Strong driving force.
3. Durable and economic, easy maintenance, and long continuous running, etc...
Alternator:
STAMFORD, LEORY SOMER, MARATHON and other alternator brands are optional
Cummins engine:
1. with the features of superior performance, high combustion efficiency and fuel efficiency;
2. Strong driving force.
3. Durable and economic, easy maintenance, and long continuous running, etc...
Alternator:
STAMFORD, LEORY SOMER, MARATHON and other alternator brands are optional
OVERVIEW
Marine generator can be open type or soundproof (silent) type.
CCS, ZC, ZY ship inspection certificates can be provided
Genset Warranty: 1 year or 1000 hours' running
Cummins International Warranty Service
| MODEL | Rated Power | Engine | Oil Capacity（L） | Fuel Consumption(g/kwh) | Genset Weight(kg) | Genset Measurements L*W*H(mm) | |||||||
| KVA | KW | A | Model | Power(KW) | Cylinder | Bore(mm) | Trip(mm) | Displacement(L) | |||||
| OWELL-C30GF | 37.5 | 30 | 54 | 4BTA3.9-GM47 | 47 | 4L | 102 | 120 | 3.9 | 11 | 214 | 1150 | 1665*582*908 |
| OWELL-C40GF | 50 | 40 | 72 | 4BTA3.9-GM47 | 47 | 4L | 102 | 120 | 3.9 | 11 | 214 | 1150 | 1665*582*908 |
| OWELL-C50GF | 62.5 | 50 | 90 | 6BT5.9-GM83 | 83 | 6L | 102 | 120 | 3.9 | 11 | 213 | 1200 | 1665*582*908 |
| OWELL-C64GF | 80 | 64 | 115 | 6BT5.9-GM83 | 83 | 6L | 102 | 120 | 5.9 | 17 | 212 | 1350 | 1665*582*908 |
| OWELL-C75GF | 93.75 | 75 | 135 | 6BT5.9-GM83 | 83 | 6L | 102 | 120 | 5.9 | 17 | 212 | 1350 | 1665*582*908 |
| OWELL-C80GF | 100 | 80 | 144 | 6BTA5.9-GM100 | 100 | 6L | 102 | 120 | 5.9 | 17 | 212 | 1200 | 2300*850*1500 |
| OWELL-C100GF | 125 | 100 | 180 | 6BTAA5.9GM115 | 115 | 6L | 114 | 135 | 8.3 | 17 | 210 | 1400 | 2350*900*1650 |
| OWELL-C100GF | 125 | 100 | 180 | 6CT8.3-GM115 | 115 | 6L | 114 | 135 | 8.3 | 24 | 210 | 1700 | 2400*900*1450 |
| OWELL-C120GF | 150 | 120 | 216 | 6CTAA8.3GM155 | 155 | 6L | 114 | 135 | 8.3 | 24 | 210 | 1900 | 2500*960*1550 |
| OWELL-C160GF | 200 | 160 | 288 | 6LTAA8.9GM200 | 200 | 6L | 114 | 145 | 8.9 | 36 | 197 | 2000 | 2700*1000*1600 |
| OWELL-C180GF | 225 | 180 | 324 | 6LTAA8.9GM200 | 200 | 6L | 114 | 145 | 8.9 | 36 | 197 | 2000 | 2700*1000*1600 |
| OWELL-C200GF | 250 | 200 | 360 | NTA855-D(M) | 240 | 6L | 140 | 152 | 14 | 38 | 201 | 2450 | 3000*1060*1900 |
| OWELL-C250GF | 312.5 | 250 | 451 | NTA855-D(M) | 284 | 6L | 140 | 152 | 14 | 38 | 201 | 2500 | 3300*980*1900 |
| OWELL-C300GF | 375 | 300 | 541 | KTA19-D(M) | 336 | 6L | 159 | 159 | 18.9 | 50 | 196 | 3300 | 3500*1300*1970 |
| OWELL-C360GF | 450 | 360 | 649 | KTA19-D(M) | 403 | 6L | 159 | 159 | 18.9 | 50 | 196 | 3300 | 3500*1300*1970 |
| OWELL-C400GF | 500 | 400 | 721 | KTA19-D(M) | 448 | 6L | 159 | 159 | 18.9 | 50 | 196 | 3500 | 3500*1300*1970 |
| OWELL-C500GF | 625 | 500 | 902 | KT38-D(M) | 560 | 12V | 159 | 159 | 37.8 | 135 | 196 | 7500 | 4400*1900*2450 |
| OWELL-C600GF | 750 | 600 | 1082 | KTA38-D(M) | 664 | 12V | 159 | 159 | 37.8 | 135 | 196 | 7600 | 4500*1900*2450 |
| OWELL-C720GF | 900 | 720 | 1298 | KTA38-D(M) | 813 | 12V | 159 | 159 | 37.8 | 135 | 196 | 7600 | 4500*1900*2450 |
| OWELL-C800GF | 1000 | 800 | 1443 | KTA38-D(M) | 880 | 12V | 159 | 159 | 37.8 | 135 | 196 | 7600 | 4500*1900*2450 |
Note: Specifications based on 1500RPM, 50HZ, 230/400V, power factor 0.8, 3 phase 4 wire system. 60HZ generator set can be customized
APPLICATION

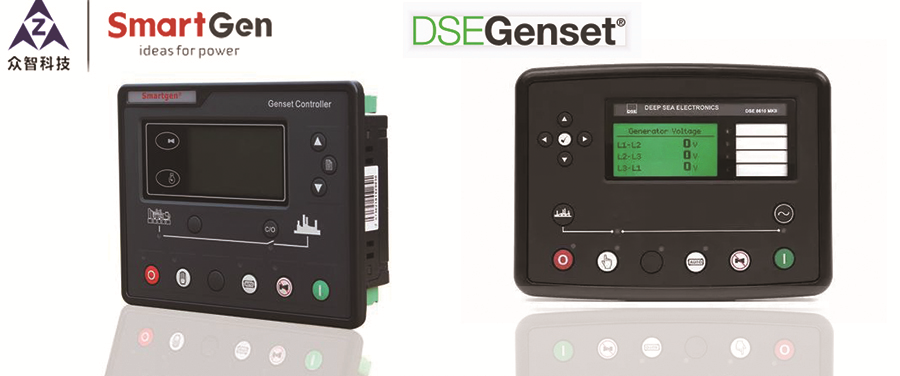

HIGH AUTOMATION LEVEL
OWELL DIESEL GENSET SERIES
Land use ordinary diesel generator set
Automated diesel generator set
Marine diesel generator set
