OWELL 8kw air cooled single cylinder portable diesel generator
Minimum Order Quantity: 5 sets
Packing List: Genset unit; Maintenance-free battery set; Engine fuel filter; Engine oil filter; Air filter; Operation manual.
Warranty: 1 year or 1000 hours' running
*********************************************************************************
OWELL 8kw air cooled single cylinder portable diesel generator
Minimum Order Quantity: 5 sets
Packing List: Genset unit; Maintenance-free battery set; Engine fuel filter; Engine oil filter; Air filter; Operation manual.
Warranty: 1 year or 1000 hours' running
*********************************************************************************
Open Frame Genset Features:
1. Small sizes and Low weight
2. Low product cost. Economical and Practical
3. Simple Structure. Easy handle and maintenance. Low using cost
4. Good heat dissipation
OWELL 8kw air cooled single cylinder portable diesel generator
| GENERATOR | Model | OWELL-8kWP | |
| Frequency(HZ) | 50 | 60 | |
| Ma*. output(kw) | 8 | 8.5 | |
| Rated output(kw) | 7.5 | 7.5 | |
| Rated. AC voltage(v) | 120, 220, 230, 240,380,400,415 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase/ three phase | ||
| Alternator type | self-e*cited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 80~85 | ||
| Fuel tank capacity(L) | 23 | ||
| Continues work(hr) | 10.5 | 9.5 | |
| ENGINE | Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |
| Bore* stroke(mm) | 98*84 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L* W* H)(mm) | 850* 550*670 | |
| Net weight(kg) | 160 | ||
| 20FT | 54 | ||
Optional: 90° Collapsible Handrail 2 or 4 Wheels

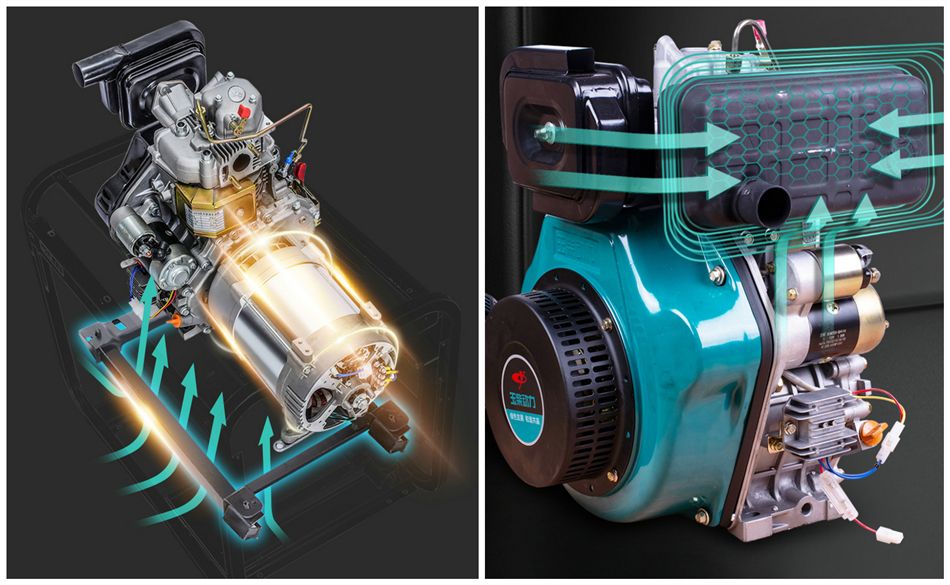

Reiforced Base Design: Compression Resistance, Shock Absorption, Strong Stability
Engine: Built-In Honeycomb Muffler Design

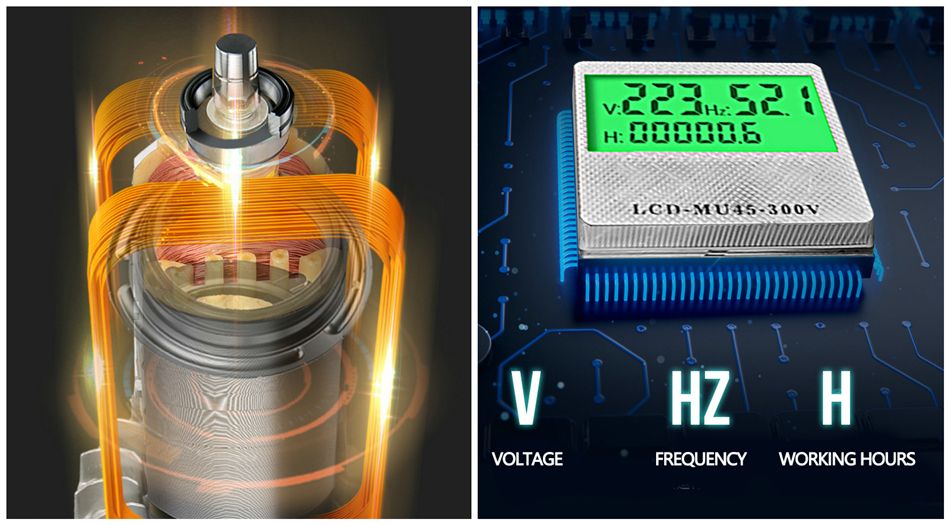

100% Cooper Alternator: Strong Output, Durable, Stable
Smart Chip: All-Round Protection
Modern Plants & Skilled Production Lines
