OWELL 800W permanent magnet wind turbine generator
Product Features
1. Low Torque when start-up. high power generating efficiency
2. Tight fit design to wind wheel. 3 blades are assembled as 120° accurately so that wind wheel runs stably.
3. Tight fit design between wheel grooves and blades, which enhances the safety and stability of whole generator
4. With intelligent microprocessor control to maximum power track, adjusts voltage and electric current effectively
OWELL 800W permanent magnet wind turbine generator
Product Features
1. Low Torque when start-up. high power generating efficiency
2. Tight fit design to wind wheel. 3 blades are assembled as 120° accurately so that wind wheel runs stably.
3. Tight fit design between wheel grooves and blades, which enhances the safety and stability of whole generator
4. With intelligent microprocessor control to maximum power track, adjusts voltage and electric current effectively

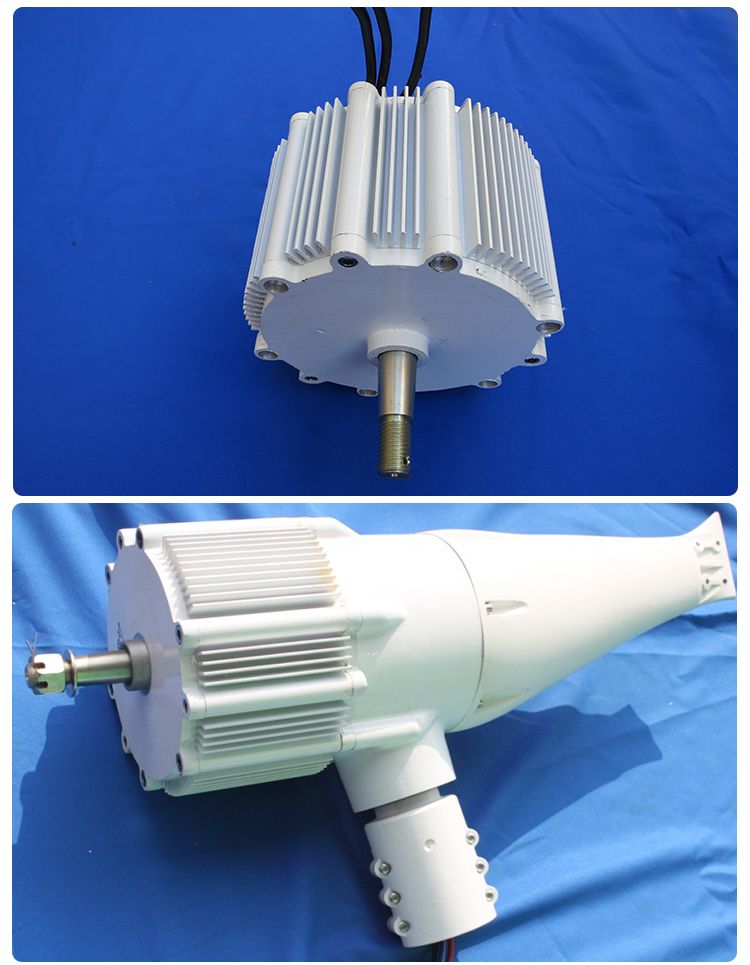

OWELL 800W horizontal axis permanent magnet wind generator
Product Description
1. Simple structure, running stably, power supply for city lamp, monitoring and home.
2. Small size and flexibility, beautiful curve, low noise and environmental harmony.
3. Anti-Rust, Anti-Corruption Damp-Proof, Water-Proof, Stand-Proof.cheap camping wind generator 600w
4. Brand New in box
5. CE Certificate
6. ISO9001:2000 Quality Certification
7. Large power, low volume, high efficiencycheap camping wind generator 600w
8. Nylon fiber or FRP blades, high efficiency of anti-wind ability,moves mutely and steadily
9. Blades with the ability of automatically stall protection under strong wind
800W wind turbine generator parameters
| Model | OWELL-HR800W |
| Rate Power | 800W |
| Max.Power | 830W |
| Rate Voltage | 48V/96V |
| Wheel Diameter | 2.3m |
| Start-up Wind Speed | 3m/s |
| Rated Wind Speed | 11m/s |
| Extreme Wind Speed | 50m/s |
| Blade Quantity | 3 or 5 pcs |
| Blade Materials | Nylon Fiber |
| Generator housing Materials | Qualitative Carbon Steel |
| Export Packing | Wooden Box |
| Generator Type | 3 phase AC Permanent Magnet Generator |
| Alnico Magnet | NdFeB |
| Lubricating | Self-lubricating |
| Brake Mode | Electromagnetic |
| Wind Adjustment | Electronically Controlled Yaw |
| Work Temperature | -40℃ - 80℃ |
*The specifications above are just for reference. Contact us for more customized solutions!!

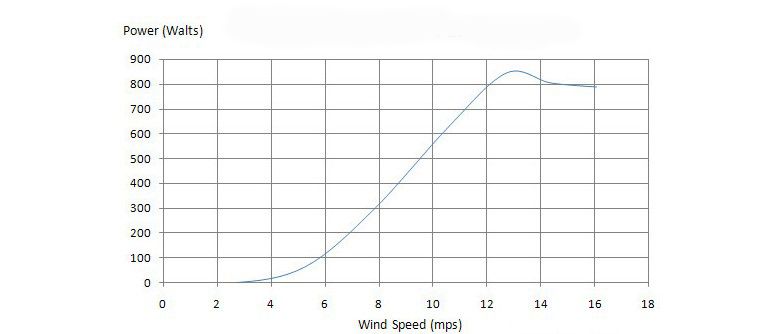

800W wind power curve
Installation Instruction
