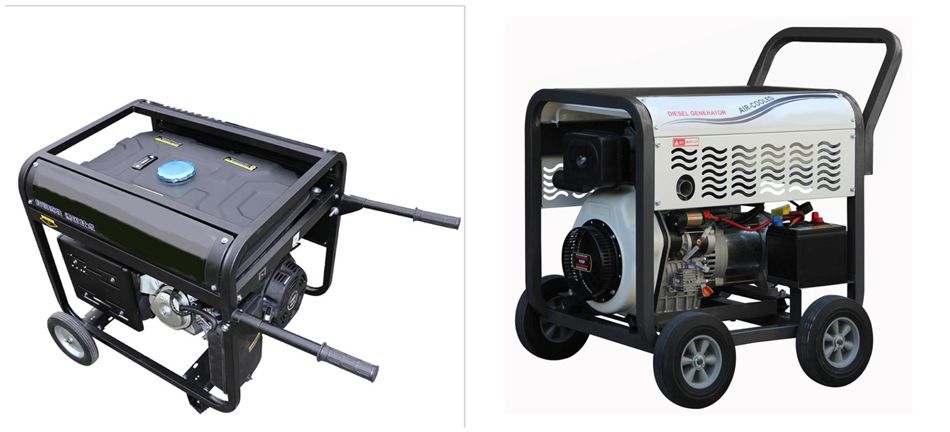

open type 5kw air cooled portable diesel generator
1 year warranty or 1000 hours'running
intelligent control & protection panel
100% cooper
Strong driving force
2 or 4 omni-direction wheels, porable use
Low noise
CE, EPA, ISO9001
open type 5kw air cooled portable diesel generator
1 year warranty or 1000 hours'running
intelligent control & protection panel
100% cooper
Strong driving force
2 or 4 omni-direction wheels, porable use
Low noise
CE, EPA, ISO9001
open type 5kw air cooled portable diesel generator
1 year warranty or 1000 hours'running
intelligent control & protection panel
100% cooper
Strong driving force
2 or 4 omni-direction wheels, porable use
Low noise
CE, EPA, ISO9001
OVERVIEW

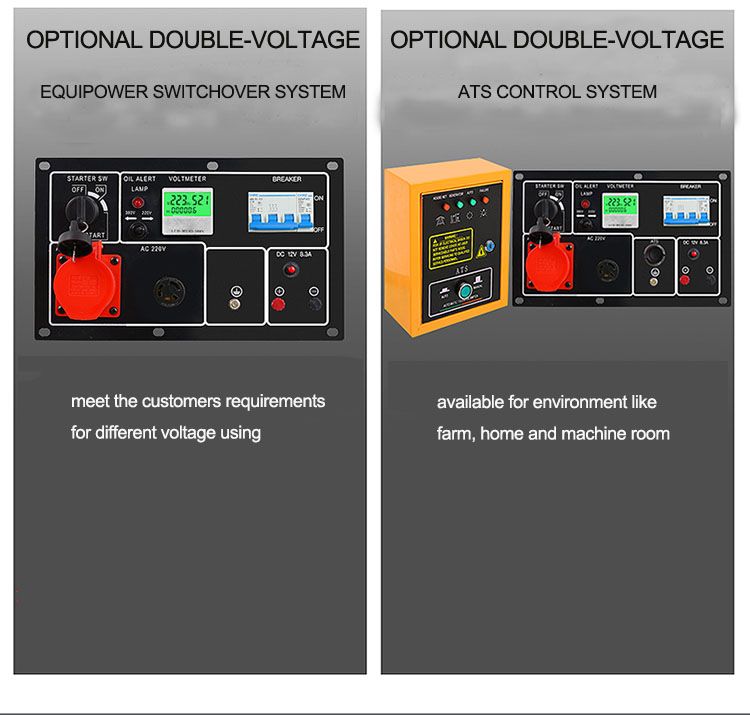

Optional: Automatic transfer switch (ATS)
Automatic parallel operation system
Accessories
Standard accessories: Standard 40 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and document
Manufacturing Standard
GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34
Warranty policy
one year or 1000 hours whichever reach first from ex-factory date.
During the guarantee period, our company will provide the free easy-damageable spare parts of alternator caused by our production quality or raw materials. After expiration, we provide spare parts maintenance to alternator at cost
Technical Specifications
| Model | OWELL-5000P | ||
| Generator | Frequancy (Hz) | 50 | 60 |
| Max.output (kW) | 5.0 | 5.5 | |
| Rated output (kW) | 4.6 | 5.0 | |
| Rated AC Voltage (V) | Customized | ||
| Power factor (cosΦ) | cosΦ=1 | ||
| DC output (V/A) | 12/8.3 | ||
| Phase | 1 or 3 | ||
| Alternator type | self-excited | ||
| Starting system | recoil or electric | ||
| Noise level at 7m (dB) | 80-85 | ||
| Fuel tank (L) | 12.5 | ||
| Continuous work time (H) | 7.7 | 7.1 | |
| Engine | Engine type | Signle-cylinder, Vertical, 4-stroke, air-cooled | |
| Bore*Trip (mm) | 86*72 | ||
| Displacement (cc) | 418 | ||
| Fuel | 0# or -10# light diesel | ||
| Lubrication oil volume (L) | 1.65 | ||
| Combustion system | Direct injection | ||
| Standard Features | Voltmeter | Y | |
| AC output socket | 2 | ||
| AC circuit breaker | Y | ||
| Oil warning light | Y | ||
| Oil alert | Y | ||
| Optional Features | DC circuit breaker | Optional | |
| Calculagraph | Optional | ||
| Big wheels | Optional | ||
| 3 phase voltage | no | ||
| Current meter | Optional | ||
| ATS | Optional | ||
| Remote control | Optional | ||
| Welding | no | ||
| Measurements | Packing sizes (L*W*H)(mm) | 740*500*640 | |
| Gross weight (kg) | 111 | ||
| 20FT | 102 | ||

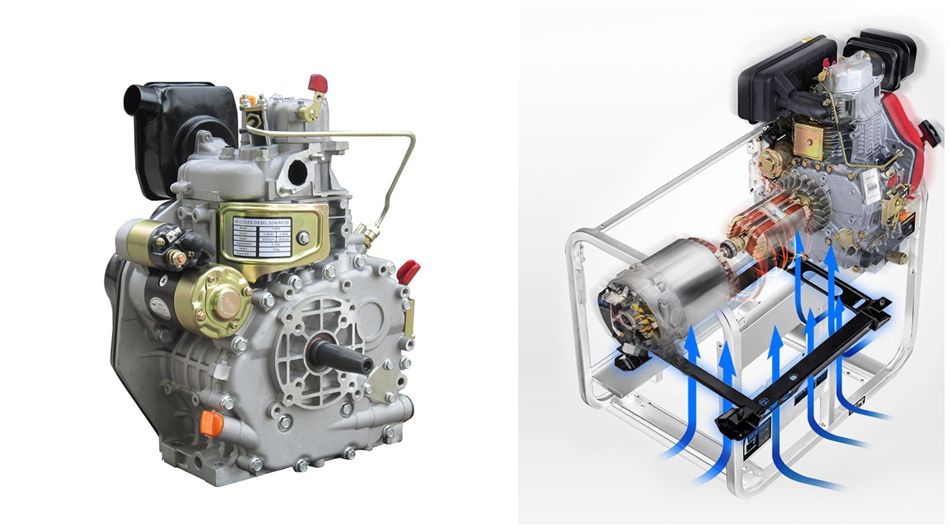

Strong Driving Force With Air Cooling Ruggedized Frame Design

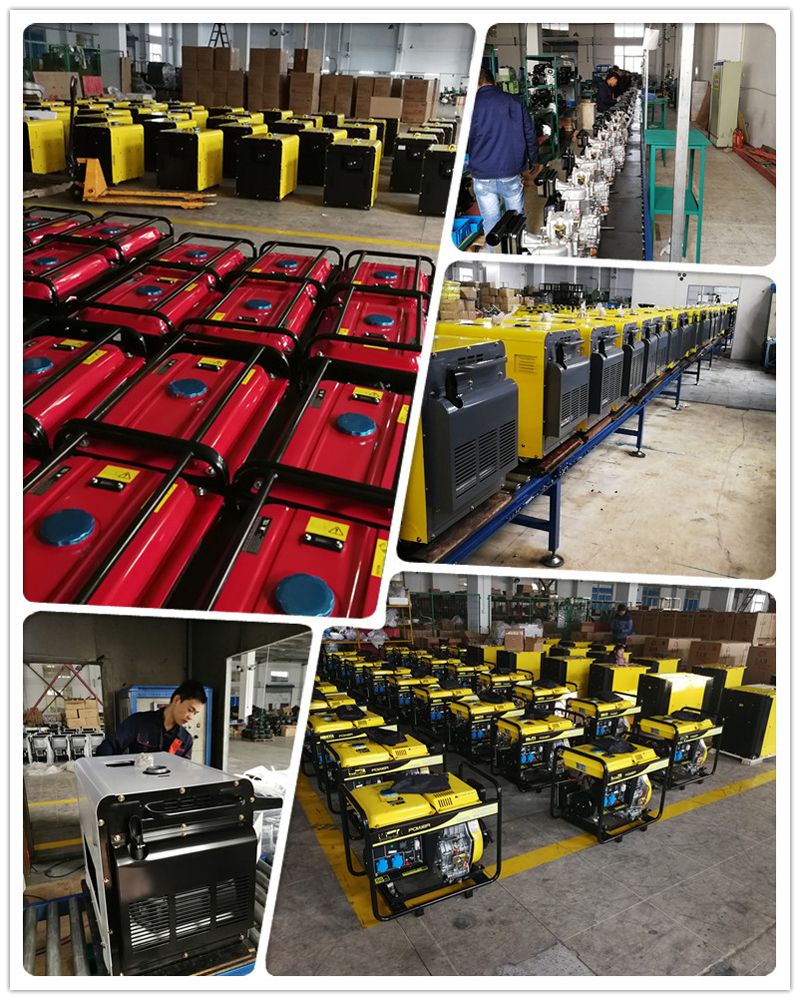

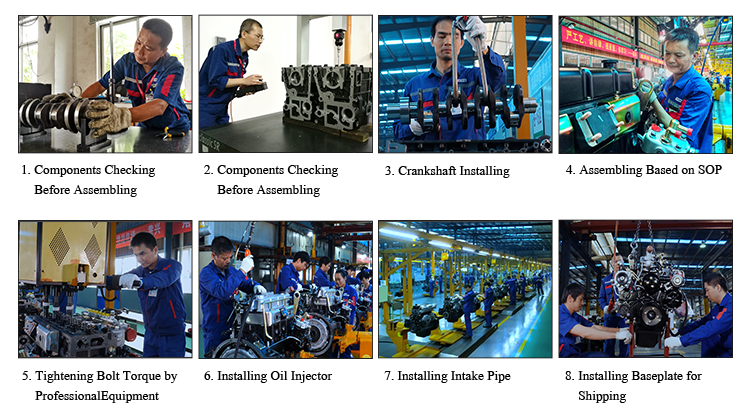

Production Lines With Advanced Equipments & Strict QC System
Workshop
