l Direct-drive permanent magnet ironless synchronous generator
l Stall design of blade over wind speed
l Mechanical automatic brake
l Electronic unloading and hydraulic brake protection
l Equipped with anemometer
l pwm unloading
l plc controller, equipped with hmi real-time screen monitoring, can download historical data.
Support customization
l Direct-drive permanent magnet ironless synchronous generator
l Stall design of blade over wind speed
l Mechanical automatic brake
l Electronic unloading and hydraulic brake protection
l Equipped with anemometer
l pwm unloading
l plc controller, equipped with hmi real-time screen monitoring, can download historical data.
Support customization
Features:
1.Security. Using vertical blades and triangular double-fulcrum,The problems of blade lose/broken or leaf flying-out have been well solved.
2.Noise. Horizontal rotation and aircraft wing design reduce the noise to an unperceivable level in natural environment.
3.Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a small wind pressure even in strong wind.
4.Rotation radius. smaller rotation radius than other types of wind turbines, space is saved while efficiency improved.
5.Power generation curve.The power generation increasing gently , it could produce 10% to 30% more power than other types of wind turbines.
6.Effective wind speed range. special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation.
7.Brake device. The blade itself has speed protection, and can configure manual mechanical and electronic brake meantime.
8.Operation and maintenance. Without gear box and steering mechanism, the wind turbine only needs regula check every 6 months.
Technology Parameters
| ITEM | OWELL-20000H |
| Rated Power | 20KW |
| Max Power | 23KW |
| Rated Voltage | Customized |
| Start wind speed | 2.5m/s |
| Rated wind speed | 12m/s |
| Safety wind speed | 45m/s |
| Turbine Weight | 1050KG |
| Wheel diameter | 4.3m |
| Wheel height | 6.8m |
| Blade quantity | 5 |
| Blades material | FRP + steel frame |
| Body material | aluminium alloy |
| Alternator | Three-phase AC Disc Magnetic Levitation Alterntaor |
| Control system | Electromagnetic/automatic adjust the Angle as per the wind |
| Yaw method | Speed self-protection, manual hydraulic brake, electronic brake |
| lubrication mode | Self-lubrication |
| Working temperature | -40℃-80℃ |
| Noise | ≤55dB |
| Design Life | ≥ 15 years |
*The specifications above are just for reference. Contact us for more customized solutions!!

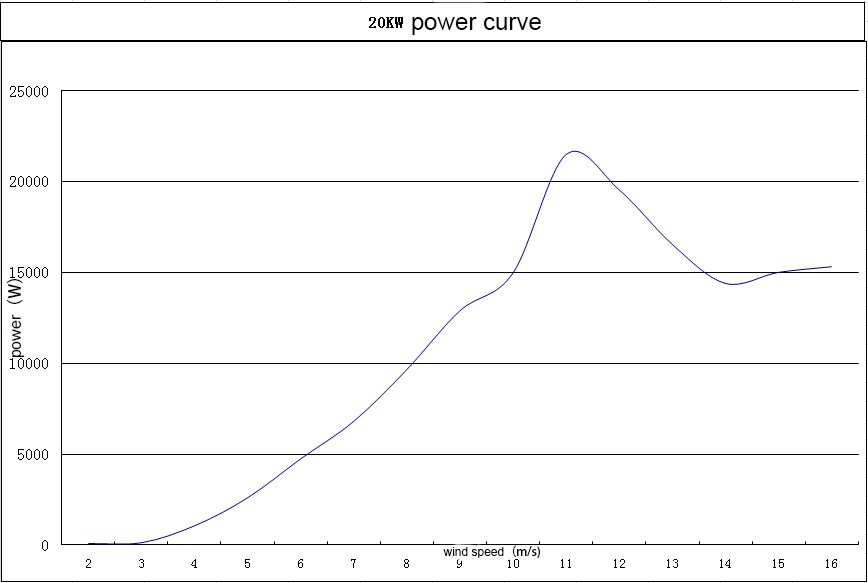

Output Power Curve
Annual generating capacity
| Wind speed（m/s） | Annual generating capacity KWH | Output power (KW) |
| 2.5 | 4905.6 | 0.56 |
| 3 | 5869.2 | 0.67 |
| 3.5 | 8584.8 | 0.98 |
| 4 | 10950 | 1.25 |
| 5 | 21900 | 2.5 |
| 6 | 43800 | 5 |
| 7 | 60444 | 6.9 |
| 8 | 87600 | 10 |
| 9 | 121764 | 13.9 |
| 10 | 131400 | 15 |
| 11 | 175200 | 20 |
| 12 | 175200 | 20 |
